Flexo Printer Slotter
Die Cutter Machines
A complete range of high-performance printing, slotting, and die-cutting solutions for corrugated cardboard packaging.
Model 1
Slotter BS-ST
BS-ST is a full automatic vacuum transfer servo feeder printer slotter die cutter designed for high-speed corrugated carton production, with servo-driven lead edge feeding, vacuum transfer printing, computerized slotting, and servo rotary die cutting in one line.
Technical Features
- Servo lead edge feeder with Bosch Rexroth servo motor drive and pressure-free feeding to reduce board damage during transfer.
- Siemens PLC and touch screen control support box-parameter input and one-click order changeover for faster setup.
- Vacuum transfer printing unit includes automatic ink washing, printing roller cleaning, and automatic suction-area adjustment based on cardboard size.
- Computerized slotting and creasing plus servo rotary die cutting provide phase adjustment by touch screen, differential compensation, and die-cutting precision up to ±1 mm.
Model 2

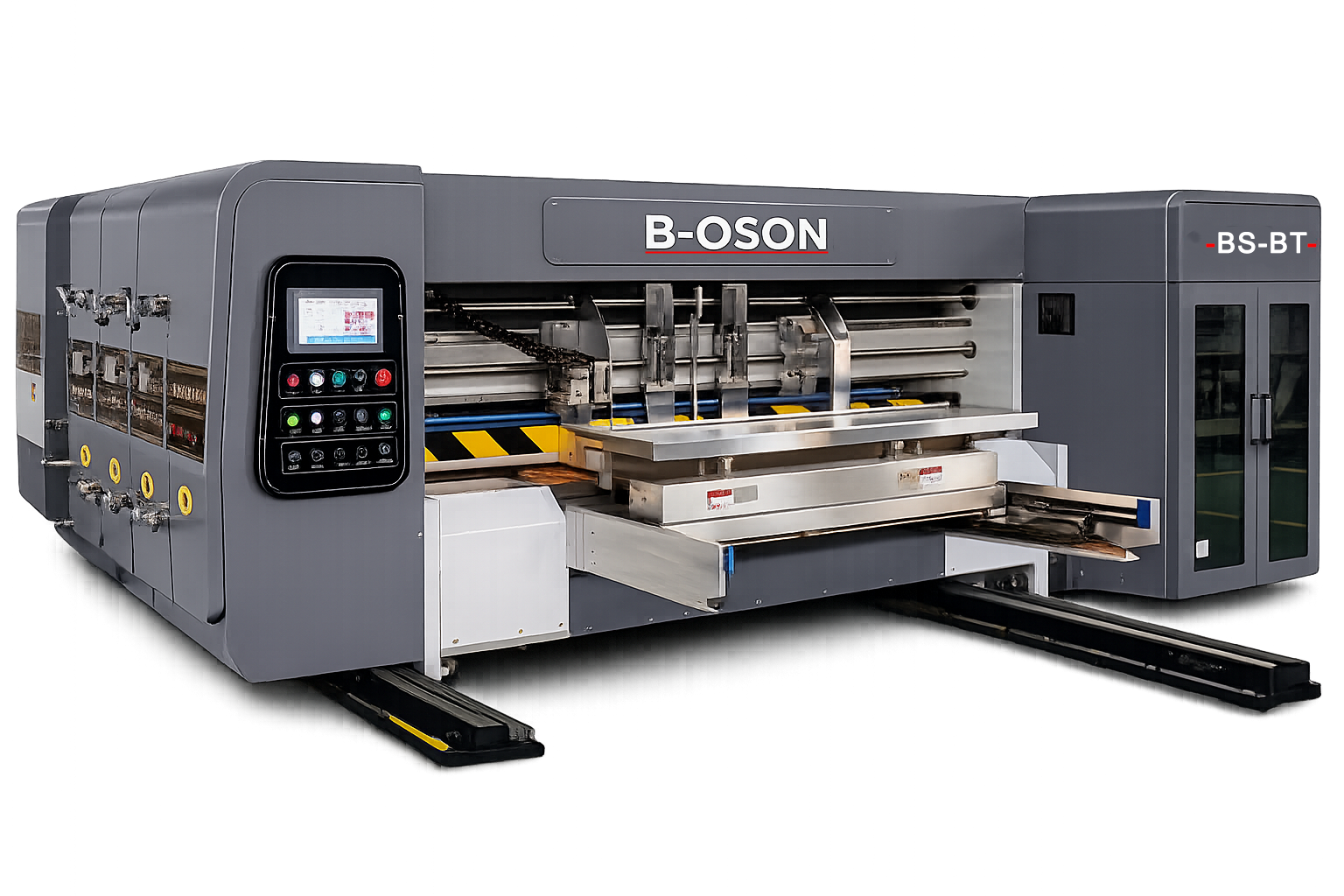

Slotter BS-BT
BS-BT is an automatic printing slotting die cutting stacker machine built for integrated carton converting, combining automatic feeding, flexo printing, slotting, die cutting, and stacking in a single production line.
Technical Features
- Lead edge feeder uses an independent feeding unit with dust removal and stable sheet transfer for corrugated cardboard processing.
- Printing section uses anilox-based flexographic printing, automatic ink circulation or cleaning functions, and phase adjustment for accurate registration.
- Slotting and die cutting sections are synchronized through computerized adjustment, helping operators change carton dimensions more efficiently.
- Integrated stacking unit supports automatic counting and finished-sheet collection at the end of the line.
Model 3
Slotter BS-ECO
BS-ECO is an automatic printer die cutter with slotter attachment aimed at practical carton production needs, offering printing, slotting, and die cutting in a more economical machine configuration.
Technical Features
- Automatic feeder supports continuous feeding integrated with the printing unit.
- Printing and die cutting are combined with slotter attachment, allowing multiple carton-converting processes on one machine line.
- Machine units use mechanical adjustment functions for size and phase changes.
- The configuration is positioned as an economical solution for carton manufacturers that need essential converting functions with simpler machine structure.
Model 4

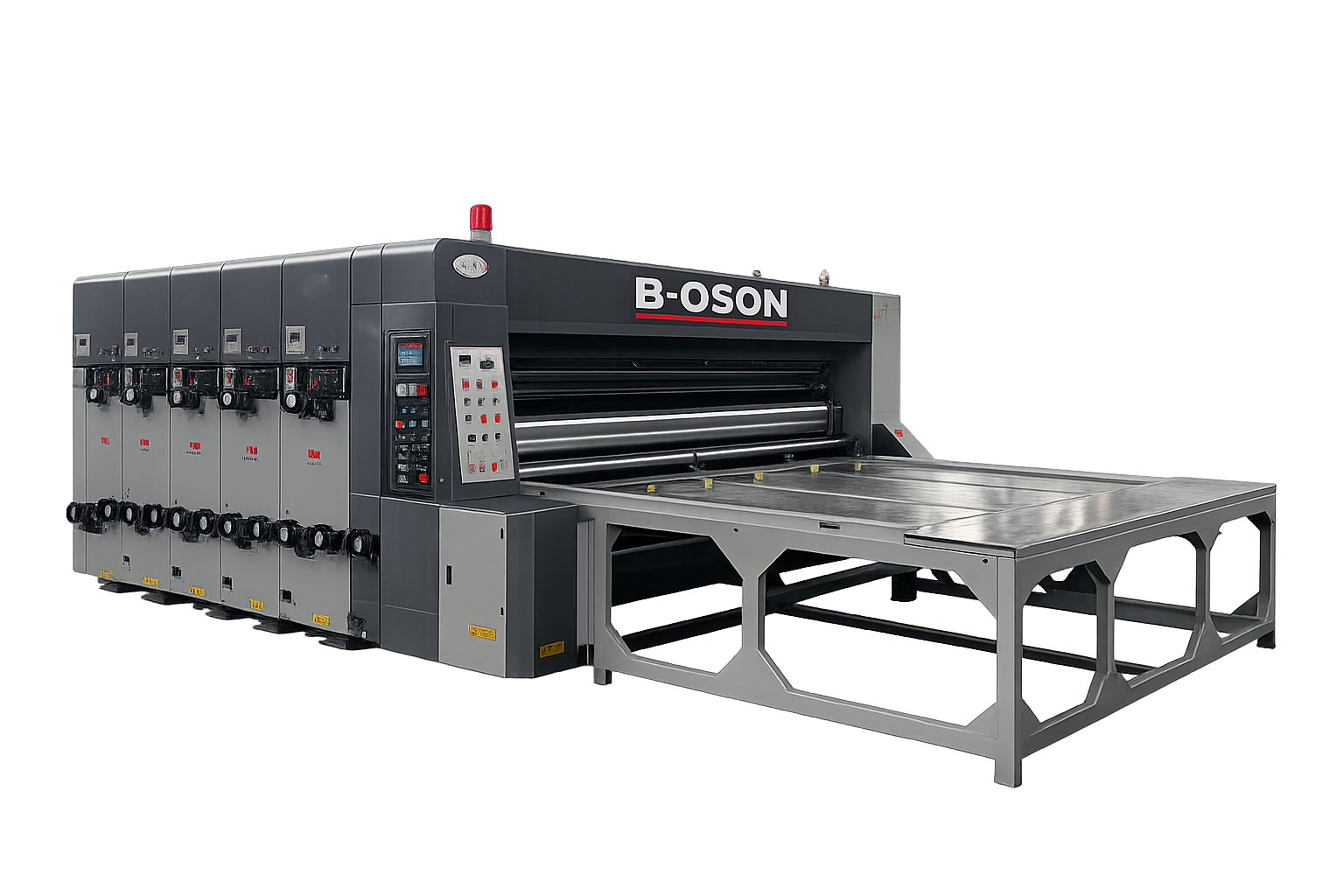

Chain Feed Table Printing Slotting Die Cutting Machine
The Chain Feed Table model is a semi-automatic water ink printer slotter die cutter machine that uses chain feeding for carton sheet transport and is intended for straightforward corrugated box printing and slotting work.
Technical Features
- Chain feed transmission handles sheet movement through the printing and slotting process in a semi-automatic working mode.
- Water-ink printing system supports carton graphics and text printing for corrugated board applications.
- Slotting and die cutting functions are integrated for basic box-forming operations on one machine platform.
- The semi-automatic design suits operations looking for simpler equipment with lower automation than full automatic servo-fed lines.
Model 5

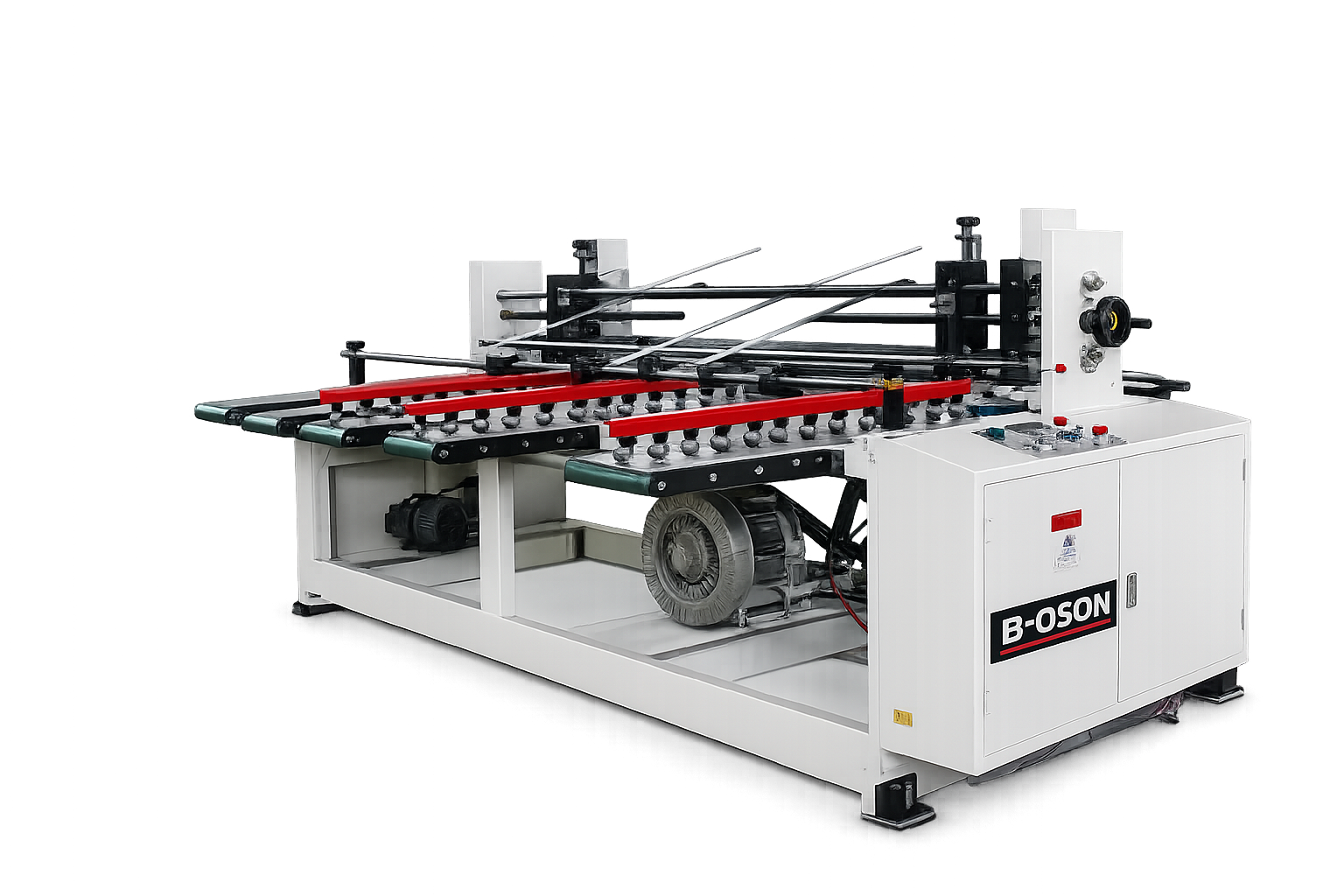

Feeder for chain feed table slotter
Robust feeding unit designed specifically for chain feed table slotters, ensuring smooth board delivery.
Technical Features
- Continuous and smooth feeding mechanism.
- Adjustable for various board thicknesses.
- Easy integration with existing slotter lines.
- Low maintenance requirements.
